24kV Cold Shrinkable Single Core Straight Through Joint

24kV Cold Shrinkable Single Core Straight Through Joint

1.Product Introduction

Rubber is known to have "elastic memory" properties, like a spring. Such as our 24kV Cold Shrinkable Single Core Straight Through Joint, Cold shrinkage technology, also known as pre-expansion technology, the elastic rubber in the elastic range of pre-support, set into the plastic support strip to be fixed. When installing, as long as the support strip is removed, the elastic body rapidly shrinks and tightens on the cable body. The cold shrinkage products manufactured by our company are all bonded with special sealing adhesive to make the overall sealing and avoid operation accidents caused by atmospheric environment. The silicone rubber used for raw materials has excellent insulation and high resilience, and will not cause electrical breakdown due to the breathing action of the cable during operation after installation. The products are widely used in electric power industry, communication industry, military industry, metallurgy, coal mining, petrochemical industry and other fields.

The scope of use of the 24kV Cold Shrinkable Single Core Straight Through Joint is suitable for 12/20(24)kV XLPE, rubber insulated single core power cables. And the installation environment of the 24kV Cold Shrinkable Single Core Straight Through Joint should be dust-free, with a temperature above 0℃, and a relative humidity of 75% or less. The 24kV Cold Shrinkable Single Core Straight Through Joint Installation acceptance test standards and operation supervision shall be carried out in accordance with relevant regulations.

Our products, including 24kV Cold Shrinkable Single Core Straight Through Joint, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

2.Product Parameter (Specification)

There are common technical parameters for the 24kV Cold Shrinkable Single Core Straight Through Joint. As for our 24kV Cold Shrinkable Single Core Straight Through Joint, the Dry Power Frequency Withstand Voltage Test is 54kV/5min. And the Impact Pressure Test is 125kV 1.2/50 μ+10times. Both parameters of our 24kV Cold Shrinkable Single Core Straight Through Joint are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.

3.Product Feature And Application

1.Full shrinkage automatic reset technology, installation without special tools, construction and installation is simple and quick;
2.No open flame, no heating, safe and reliable;
3.The cable body has persistent radial pressure, good sealing and waterproof, to ensure long-term reliable operation.

4.Product Details

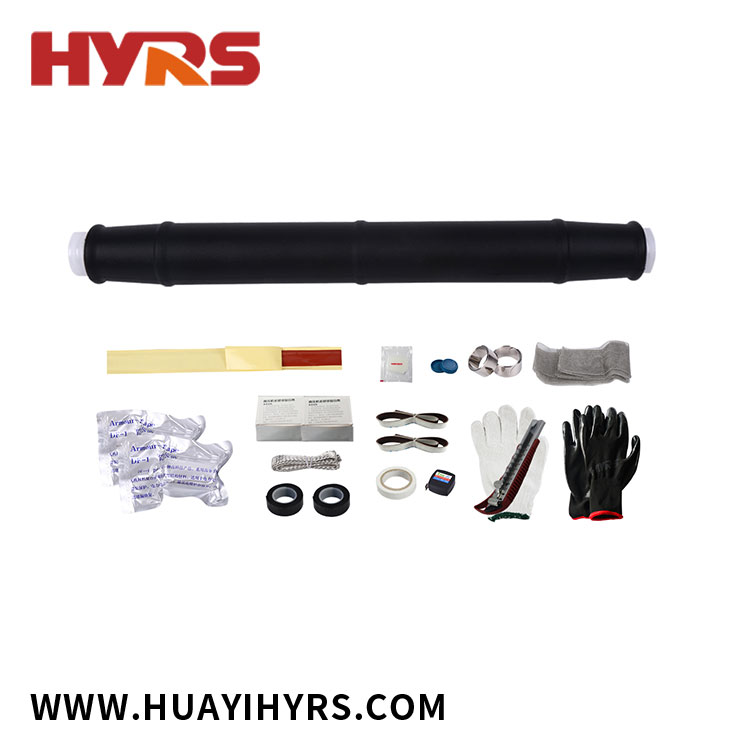

The Material list /Specific contents of the 24kV Cold Shrinkable Single Core Straight Through Joint

Item	Components	Unit	Single core	Three cores	Remark
1	Joint tube	pc	1	3
2	Composite waterproof tape	bag	2	6(7)
3	Armour tape	roll	2	4(5)
4	Constant force spring	pc	2	8	2 large 6 Small
5	Copper mesh	pc	1	3
6	Semi-conductive tape	roll	2(3)	6
7	Shield earth braid	pc	1	3
8	Armour earth braid	pc	-	1
9	Water-proof sealing mastic	bag	1	2
10	Silicone grease	bag	1	2
11	PVC tape	roll	1	5
12	Abrasive paper	pc	2	6
13	Glove	pair	2	2
14	Cleaning tissue	bag	2	6
15	Measure tape	pc	1	1
16	Knife	pc	1	1
17	Paper ruler	pc	1	1
18	Bandage	pc	1	2
19	Installation instruction	pc	1	1

5.Product Qualification

Cold shrinkage cable accessories is the use of elastomer materials (commonly used silicone rubber and ethylene propylene rubber) in the factory injection vulcanization molding, and then through expanding, lined with plastic spiral support to form a variety of cable accessories. During field installation, these preexpansion pieces are put on the treated cable ends or joints, and the plastic spiral strips (supports) of internal support are drawn out and pressed on the cable insulation to form cable accessories. Because it is at room temperature by elastic shrinkage force, rather than like heat shrinkage cable accessories to heat shrinkage with fire, so commonly known as cold shrinkage cable accessories. The product is waterproof, stress control, shielding, insulation in one, can be used in a variety of harsh environmental conditions for a long time. Widely used in Electric Power Industry, Petroleum Industry, Chemical Industry, Metallurgy, Railway, Port, Construction and other fields.

Our products, including 24kV Cold Shrinkable Single Core Straight Through Joint, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

6.Deliver, Shipping And Serving

1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).
