Termination Tube
1.Product Introduction
During field installation of the Termination Tube, these preexpansion pieces are put on the treated cable ends or joints, and the plastic spiral strips (supports) of internal support are drawn out and pressed on the cable insulation to form cable accessories. Because it is at room temperature by elastic shrinkage force, rather than like heat shrinkage cable accessories to heat shrinkage with fire, so commonly known as cold shrinkage cable accessories. In the early stage, the cold shrink cable end only uses silicon rubber cold shrink parts for additional insulation, and the stress cone type or stress band wrap type is still used for electric field treatment. Cold shrinkage stress control tubes are commonly used now, with voltages ranging from 10kV to 35kV. Cold contraction cable joint, 1kV grade adopts cold contraction insulation pipe as enhanced insulation, 10kV grade adopts cold contraction insulation joint with inner and outer semi-conductive shielding layer.
Cold shrinkable Termination Tube refers to the tubular cable accessory with cold shrinkage technology, which has the functions of insulation, sealing and protection. Cold shrinkage technology is also known as pre-expansion technology, because it is at room temperature by elastic shrinkage force contraction, rather than like thermal shrinkage material to heat shrinkage, so commonly known as cold shrinkage technology. Cold shrinkage tube commonly used materials are silicone rubber and ethylene propylene rubber. Cold shrinkage tube has the advantages of small volume, convenient operation, no special tools, wide range of application and less product specifications. Compared with heat-shrinkable products, it does not need to be heated by tools, and it can be tightly sealed under the condition of thermal expansion and contraction, without any gap caused by thermal expansion and contraction.
Our products, including Termination Tube, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.
2.Product Parameter (Specification)
|
Technical Specification
|
|
Test Item
|
Parameters
|
|
Hardness
|
49 Shore A
|
|
The tensile strength
|
11.8 MPa
|
|
Elongation at break
|
641%
|
|
Tear strength
|
38.6 kN/m (N/mm)
|
|
Dielectric strength
|
19.1 kV/mm
|
There are some common technical parameters for the Termination Tube. As for our Termination Tube, the The tensile strength is11.8 MPa, and the Tear strength is 38.6 kN/m (N/mm). These parameters of our Termination Tube are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.
3.Product Feature And Application
1, Easy installation, only manual operation, no heating or use of special tools, joints do not need hot melt adhesive or adhesive tape to strengthen the seal;
2, Suitable for a wide range of different specifications of the cable connection seal, can be used in indoor, outdoor, overhead, put in water or buried occasions of power, communication and other cables;
3, Strong resilience, radial retraction force, small permanent deformation, even if long-term use of the cable still maintain a permanent radial pressure, tight seal, moisture, waterproof, dust-proof performance is excellent;
4. Because EPDM has excellent resilience and "elastic memory", it can "breathe in the same breath" with seals, so it can play an excellent sealing effect. It can still maintain a very good sealing effect in the dynamic environment of wind blowing and swaying.
5, Salt spray corrosion resistance, acid and alkali resistance, ozone aging resistance, weather aging resistance, uv aging resistance;
6, High mechanical strength, good softness, with excellent resistance to puncture, wear resistance, flexure resistance, fatigue resistance of physical and mechanical properties.
4.Product Details

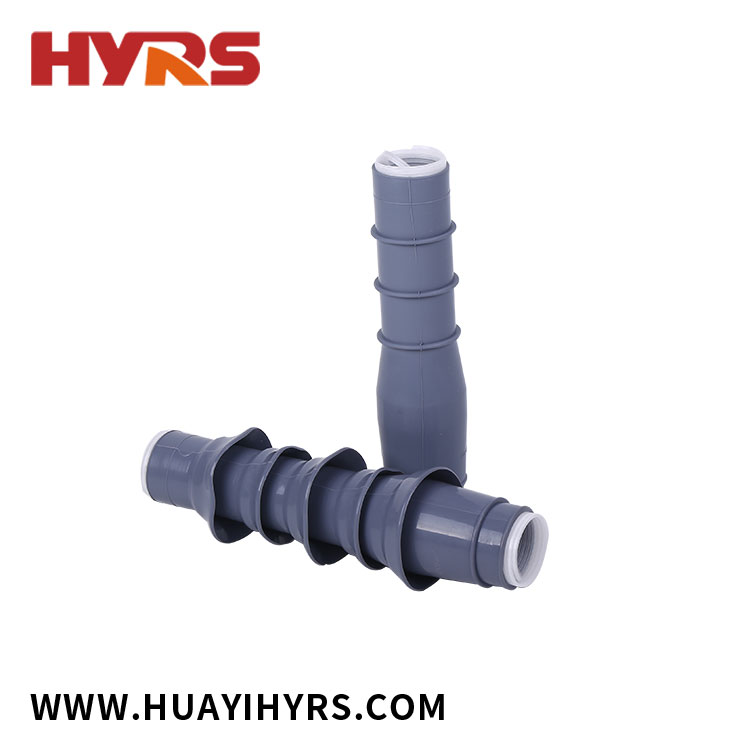

The details of the Termination Tube
5.Product Qualification
Cold shrinkage cable accessories is the use of elastomer materials (commonly used silicone rubber and ethylene propylene rubber) in the factory injection vulcanization molding, and then through expanding, lined with plastic spiral support to form a variety of cable accessories. During field installation, these preexpansion pieces are put on the treated cable ends or joints, and the plastic spiral strips (supports) of internal support are drawn out and pressed on the cable insulation to form cable accessories. Because it is at room temperature by elastic shrinkage force, rather than like heat shrinkage cable accessories to heat shrinkage with fire, so commonly known as cold shrinkage cable accessories. The product is waterproof, stress control, shielding, insulation in one, can be used in a variety of harsh environmental conditions for a long time. Widely used in Electric Power Industry, Petroleum Industry, Chemical Industry, Metallurgy, Railway, Port, Construction and other fields.
Our products, including Termination Tube, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.
6.Deliver, Shipping And Serving
1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).
7.FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
Hot Tags: Termination Tube, China, Cheap, Quality, Bulk, Manufacturers, Suppliers, Factory, Quotation, In Stock
