10kV Heat Shrinkable Single Core Termination Kit for Outdoor
  • 10kV Heat Shrinkable Single Core Termination Kit for Outdoor10kV Heat Shrinkable Single Core Termination Kit for Outdoor

10kV Heat Shrinkable Single Core Termination Kit for Outdoor

Our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is a kind of insulation tube with high temperature shrinkage, soft flame retardant, insulation and corrosion prevention function. As one of the leading industries in heat shrinkable cable, Our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is widely used in electronic equipment wiring waterproof, wire branch sealing fixed. Our independent plant covers an area of more than 14,000 square meters of production and testing equipment are complete.

Send Inquiry

Product Description

10kV Heat Shrinkable Single Core Termination Kit for Outdoor

1.Product Introduction


Our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is a kind of insulation tube with high temperature shrinkage, soft flame retardant, insulation and corrosion prevention function. This product is mainly used in electric power, electronics, petroleum, chemical, construction, communication and other industries. The 10kV Heat Shrinkable Single Core Termination Kit for Outdoor not only has excellent electrical performance and good mechanical properties, but also has the advantages of light weight, easy installation, aging resistance, adapt to the use of high temperature and cold conditions.


10kV Heat Shrinkable Single Core Termination Kit for Outdoor product model10kV Heat Shrinkable Single Core Termination Kit for Outdoor wholesale


As one of the leading industries in heat shrinkable cable, Our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is widely used in electronic equipment wiring waterproof, wire branch sealing fixed. Our independent plant covers an area of more than 14,000 square meters of production and testing equipment are complete. Our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is Suitable for 6/10kV, 8.7/15kV XLPE single core power cables. It’s full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products. The 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is widely used in electric power, electronics, petroleum, chemical, construction, communication and other electrical fields.


10kV Heat Shrinkable Single Core Termination Kit for Outdoor factory


The 10kV Heat Shrinkable Single Core Termination Kit for Outdoor Installation acceptance test standards and operation supervision shall be carried out in accordance with relevant regulations. Our heat shrinkable products, 10kV Heat Shrinkable Single Core Termination Kit for Outdoor, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification.

10kV Heat Shrinkable Single Core Termination Kit for Outdoor certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

Parameters

Wet Power Frequency Withstand Voltage Test (Outdoor)

35kV/1min

Dry Power Frequency Withstand Voltage Test (Outdoor)

39kV/5min

Impact Pressure Test

95kV 1.2/50μ+10times

Partial Discharge Test

≤10pc(1.73Uo)


There are four common technical parameters for the 10kV Heat Shrinkable Single Core Termination Kit for Outdoor. As for our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor, the Wet Power Frequency Withstand Voltage Test is 35kV/1min. And the Impact Pressure Test is 95kV 1.2/50 μ+10times. And the Partial Discharge Test is ≤10pc(1.73Uo). These parameters of our 10kV Heat Shrinkable Single Core Termination Kit for Outdoor are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.


3.Product Feature And Application


The scope of use of the 10kV Heat Shrinkable Single Core Termination Kit for Outdoor is suitable for 6/10kV, 8.7/15kV XLPE single core power cables. And the installation environment of the 10kV Heat Shrinkable Single Core Termination Kit for Outdoor should be dust-free, with a temperature above 0℃, and a relative humidity of 75% or less. The 10kV Heat Shrinkable Single Core Termination Kit for Outdoor Installation acceptance test standards and operation supervision shall be carried out in accordance with relevant regulations.


10kV Heat Shrinkable Single Core Termination Kit for Outdoor drawing


4.Product Details

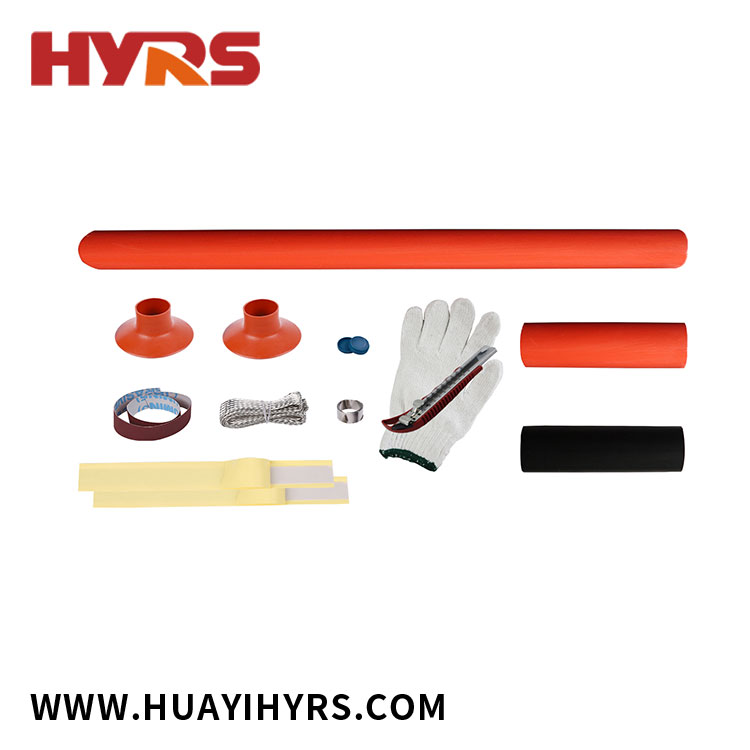

The Material list /Specific contents of the 10kV Heat Shrinkable Single Core Termination Kit for Outdoor.

Item

Components

Unit

Single core

Three cores

Remark

1

Breakout

pc

-

1



2

Stress control tube

pc

1

3



3

Insulation tube

pc

1

3



4

Sealing tube

pc

1

3



5

Single core rain shed

pc

2

6

Only outdoor

6

Three core rain shed

pc

-

1

Only outdoor

7

marking tube

pc

-

3



8

Filling mastic

bag

1

1



9

Earth braid

pc

1

1



10

Constant force spring

pc

1

2



11

silicone grease

bag

1

1



12

knife

pc

1

1



13

abrasive paper

pc

2

3



14

Gloves

pair

2

2



15

Cleaning tissue

bag

2

3



16

cone

pc

-

1



17

installation instruction

pc

1

1



10kV Heat Shrinkable Single Core Termination Kit for Outdoor


5.Product Qualification


The production of heat-shrinkable cable accessories needs to go through a series of processes such as Mixing → Forming → Irradiation → Expansion → Gluing. Shape memory effect of polymer materials is the basic principle of fabricating heat-shrinkable materials. The characteristics of the polymer material itself give the heat shrinkable cable accessories with good electrical and mechanical properties, light weight, easy installation and other advantages. The product is waterproof, stress control, shielding, insulation in one, can be used in a variety of harsh environmental conditions for a long time. Widely used in Electric Power Industry, Petroleum Industry, Chemical Industry, Metallurgy, Railway, Port, Construction and other fields.


10kV Heat Shrinkable Single Core Termination Kit for Outdoor produce equipment


Our products, including 10kV Heat Shrinkable Single Core Termination Kit for Outdoor, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.


10kV Heat Shrinkable Single Core Termination Kit for Outdoor test report


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality.
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you.
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).


10kV Heat Shrinkable Single Core Termination Kit for Outdoor packing


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
