1kV Cold Shrinkable Three Cores Termination Kit

1kV Cold Shrinkable Three Cores Termination Kit

1.Product Introduction

The 1kV Cold Shrinkable Three Cores Termination Kit has the advantages of small size, easy operation, rapid, no special tools, wide range of application and less product specifications. Compared with the heat-shrinkable cable accessories, it does not need to be heated by fire, and moving or bending after installation will not be as dangerous as the heat-shrinkable cable accessories. (Because the end of the cold-shrinkable cable depends on the elastic compression force). The 1kV Cold Shrinkable Three Cores Termination Kit installed installation procedures from one end to the other side of the construction, the construction process cannot be changed, the process is very difficult to have a bubble will appear in the cable pipe, therefore the construction quality is higher, the construction of hot shrinkage is different, heat from one end to the other side, it is easy to result in uneven heating, which leads to the generation of air bubbles, seriously affect the construction quality.

The scope of use of the 1kV Cold Shrinkable Three Cores Termination Kit is suitable for 0.6/1kV, XLPE, rubber insulated single core power cables. And the installation environment of the 1kV Cold Shrinkable Single Core Termination Kit should be dust-free, with a temperature above 0℃, and a relative humidity of 75% or less. The 1kV Cold Shrinkable Single Core Termination Kit Installation acceptance test standards and operation supervision shall be carried out in accordance with relevant regulations

Our products, including 1kV Cold Shrinkable Three Cores Termination Kit, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

2.Product Parameter (Specification)

There are Three common technical parameters for the 1kV Cold Shrinkable Three Cores Termination Kit. As for our 1kV Cold Shrinkable Three Cores Termination Kit, the Wet Power Frequency Withstand Voltage Test is 4kV/1min. And the Power Frequency Withstand Voltage Test is 2.4kV/4h. Both parameters of our 1kV Cold Shrinkable Three Cores Termination Kit are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.

3.Product Feature And Application

1.Full shrinkage automatic reset technology, installation without special tools, construction and installation is simple and quick;
2.No open flame, no heating, safe and reliable;
3.The cable body has persistent radial pressure, good sealing and waterproof, to ensure long-term reliable operation.

4.Product Details

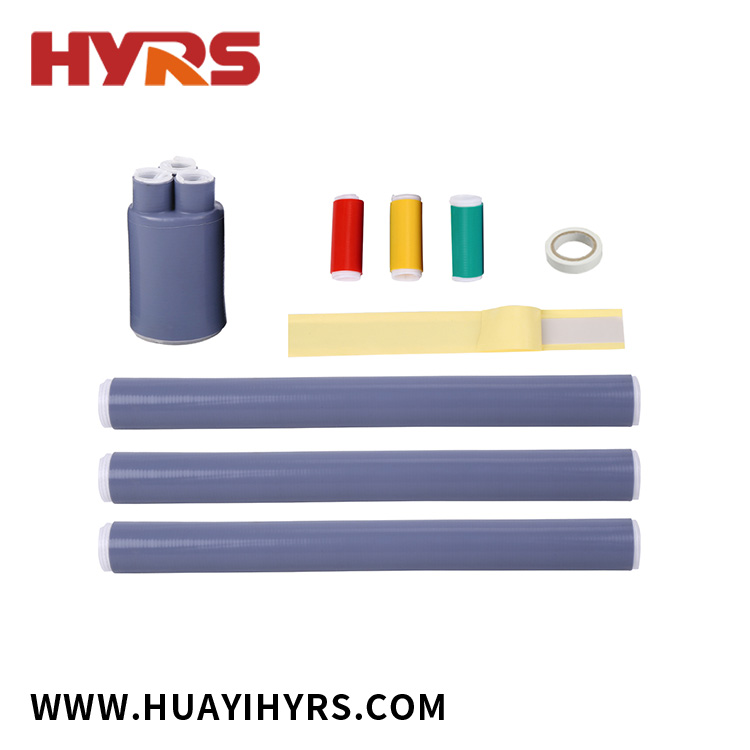

The Material list /Specific contents of the 1kV Cold Shrinkable Three Cores Termination Kit

5.Product Qualification

Cold shrinkage cable accessories is the use of elastomer materials (commonly used silicone rubber and ethylene propylene rubber) in the factory injection vulcanization molding, and then through expanding, lined with plastic spiral support to form a variety of cable accessories. During field installation, these preexpansion pieces are put on the treated cable ends or joints, and the plastic spiral strips (supports) of internal support are drawn out and pressed on the cable insulation to form cable accessories. Because it is at room temperature by elastic shrinkage force, rather than like heat shrinkage cable accessories to heat shrinkage with fire, so commonly known as cold shrinkage cable accessories. The product is waterproof, stress control, shielding, insulation in one, can be used in a variety of harsh environmental conditions for a long time. Widely used in Electric Power Industry, Petroleum Industry, Chemical Industry, Metallurgy, Railway, Port, Construction and other fields.

Our products, including 1kV Cold Shrinkable Three Cores Termination Kit, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

6.Deliver, Shipping And Serving

1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).

7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
