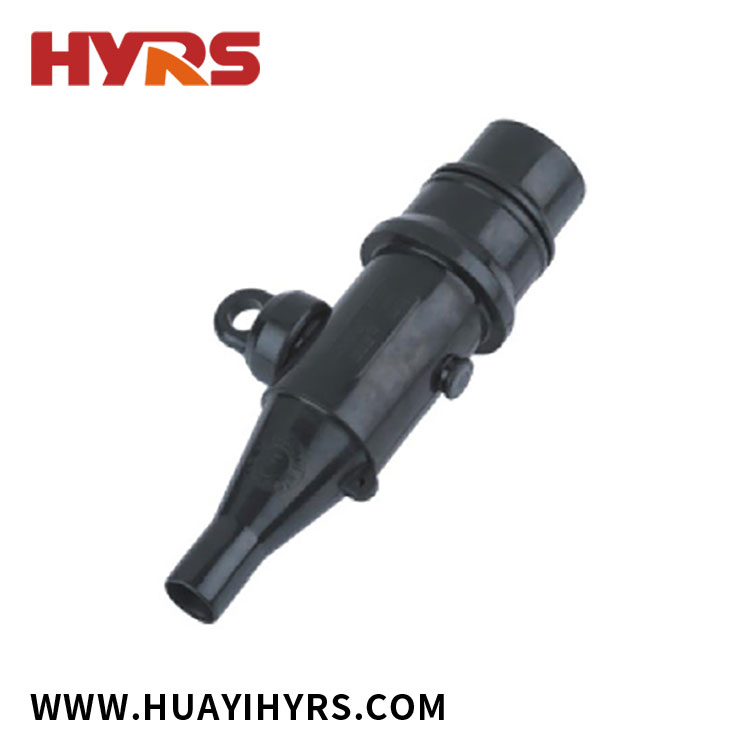

10kV and 24kV Straight-through Cable Connector
  • 10kV and 24kV Straight-through Cable Connector10kV and 24kV Straight-through Cable Connector

10kV and 24kV Straight-through Cable Connector

10kV and 24kV Straight-through Cable Connector threads into a universal bushing well to provide the same function as an integral load break bushing. Using bushing inserts makes field installation and replacement possible and efficient. Bushing insert and elbow connectors comprise the essential components of all load break connections. It is mainly used as the high-voltage electrical connection for American box, outdoor ring network cabinet. Bushing insert is used with bushing holder that makes it possible to on-site installation and replacement.

Send Inquiry

Product Description

10kV and 24kV Straight-through Cable Connector


1.Product Introduction


10kV and 24kV Straight-through Cable Connector is used for connecting cable and transformer, switch gear, cable connection box, etc. Products meet the GB/T 12706.4-2002 IEC60502.4-2005. The inner hexagon of the bushing insert makes installation more convenient. With the use of the installation tool, it can be tightly installed to the bushing holder to avoid any potential damage. The yellow position ring of the product can directly reflect whether the sealing header is installed properly. The advanced design inside the bushing insert ensures that the arc can be destroyed normally when it id disconnected from plug head. 10kV and 24kV Straight-through Cable Connector provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug. Built-in capacity test point to determine the circuit status or install a fault indicator. No minimum phase clearance requirements. Mounting can be vertical, horizontal, or any angle in between.


10kV and 24kV Straight-through Cable Connector


The 10kV and 24kV Straight-through Cable Connector is used to connect switch cabinet, cable branch box, inlet and outlet bushing and other equipment. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our 10kV and 24kV Straight-through Cable Connector full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.


10kV and 24kV Straight-through Cable Connector factory


Our products, including 10kV and 24kV Straight-through Cable Connector, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

10kV and 24kV Straight-through Cable Connector certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

Parameters

Rated voltage

24kV

Impulse voltage withstand

125kV

AC voltage withstand

54kV/5min

Continuous rated current

250A

Overload current

300A/8h

Short circuit current

12.5A/1S


All the parameters of the 10kV and 24kV Straight-through Cable Connector are in conformity with the requirements and qualified.

3.Product Feature And Application


Executive Standard
*DIN47636.7.1990 with Power cable detachable accessory set protruding from cone, dimensions of tube and separable coupling devices Um up to 35kV;
*ANSIIEEE592-1900 Exposed semiconductor sheath for high voltage cable joints and separable insulated connectors;
*IEC60502 Extruded insulated power cables and accessories for rated voltage from 1kV (Um=1.2kV) to 30kV (Um=35kV);
*IEC61442 Test method for accessories of power cables with rated voltage from 6kV (Um=7.2kV) to 30kV (Um=35kV);
*GB12706-2002 Extruded insulated power cables and their accessories for rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV);
*GB311.1-1997 High voltage transmission and distribution equipment insulation coordination;
*GB/41.9-1999 Technical conditions of high pressure casing;
*GB11032-2010 Ac non - gap metal oxidation arrester;

4.Product Details


The details of the 10kV and 24kV Straight-through Cable Connector


10kV and 24kV Straight-through Cable Connector


5.Product Qualification


The 10kV and 24kV Straight-through Cable Connector has compact structure, small footprint, easy installation, convenient operation and maintenance free. The 10kV and 24kV Straight-through Cable Connector has an outdoor all-weather, fully protective structure. Suitable for high temperature, cold, flood immersion, high dust area. Fully sealed, fully insulated structure, no insulation distance, effectively ensure personal safety. The 10kV and 24kV Straight-through Cable Connector can be flexibly combined to make the outlet branch number up to seven, and can be combined with the load switch to form a ring network power supply, fully meet a variety of wiring requirements. The 10kV and 24kV Straight-through Cable Connector can be used as a switch with load plug. After installing fault indicator, cable fault can be detected quickly.


10kV and 24kV Straight-through Cable Connector equipment test report


Our products, including 10kV and 24kV Straight-through Cable Connector, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.


10kV and 24kV Straight-through Cable Connector test report


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).



7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.

Hot Tags: 10kV and 24kV Straight-through Cable Connector, China, Cheap, Quality, Bulk, Manufacturers, Suppliers, Factory, Quotation, In Stock
