12kV Integrated Bushing

12kV Integrated Bushing

1.Product Introduction

The 12kV integrated bushing provides interface for 630A European-style joint products, which is mainly used for SF6 load switch branch box to connect with European-style front and rear joint and other products. The body of the product is made of high quality epoxy resin. The design of rain shed structure increases creepage distance and improves the electrical performance of equipment; The 12kV integrated bushing with good Flame Retardant; The inner layer has the advantages of low melting point, waterproof sealing and high adhesion; The 12kV integrated bushing with strong electrical safety performance.

HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our 12kV Integrated Bushing full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Our products, including 12kV Integrated Bushing, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

2.Product Parameter (Specification)

All the parameters of the 12kV Integrated Bushing are in conformity with the requirements and qualified.

3.Product Feature And Application

Executive Standard
*DIN47636.7.1990 with Power cable detachable accessory set protruding from cone, dimensions of tube and separable coupling devices Um up to 35kV;
*ANSIIEEE592-1900 Exposed semiconductor sheath for high voltage cable joints and separable insulated connectors;
*IEC60502 Extruded insulated power cables and accessories for rated voltage from 1kV (Um=1.2kV) to 30kV (Um=35kV);
*IEC61442 Test method for accessories of power cables with rated voltage from 6kV (Um=7.2kV) to 30kV (Um=35kV);
*GB12706-2002 Extruded insulated power cables and their accessories for rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV);
*GB311.1-1997 High voltage transmission and distribution equipment insulation coordination;
*GB/41.9-1999 Technical conditions of high pressure casing;
*GB11032-2010 Ac non - gap metal oxidation arrester;

4.Product Details

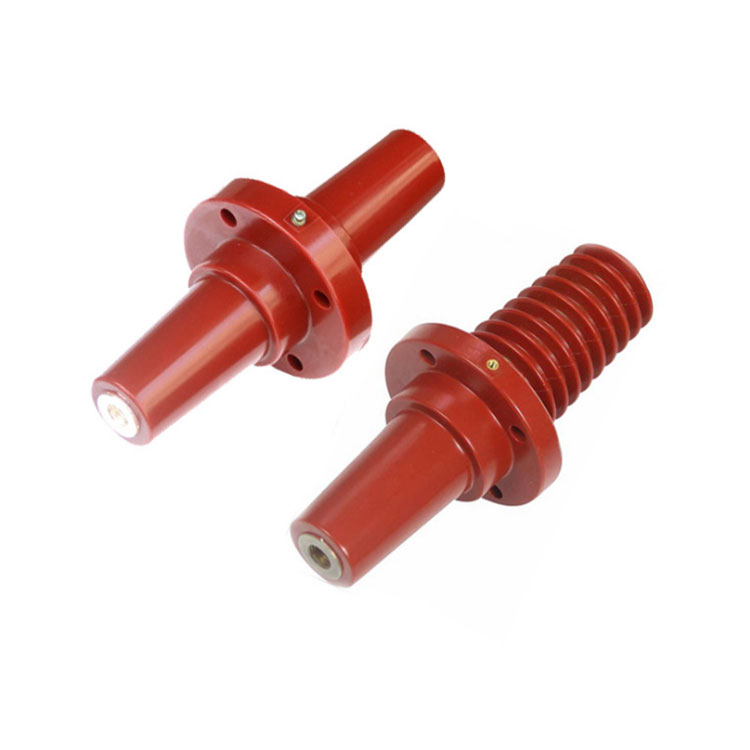

The details of the 12kV Integrated Bushing

5.Product Qualification

The 12kV Integrated Bushing has compact structure, small footprint, easy installation, convenient operation and maintenance free. The 12kV Integrated Bushing has an outdoor all-weather, fully protective structure. Suitable for high temperature, cold, flood immersion, high dust area. Fully sealed, fully insulated structure, no insulation distance, effectively ensure personal safety. The 12kV Integrated Bushing can be flexibly combined to make the outlet branch number up to seven, and can be combined with the load switch to form a ring network power supply, fully meet a variety of wiring requirements. The 12kV Integrated Bushing can be used as a switch with load plug. After installing fault indicator, cable fault can be detected quickly.

Our products, including 12kV Integrated Bushing, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

6.Deliver, Shipping And Serving

1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).
