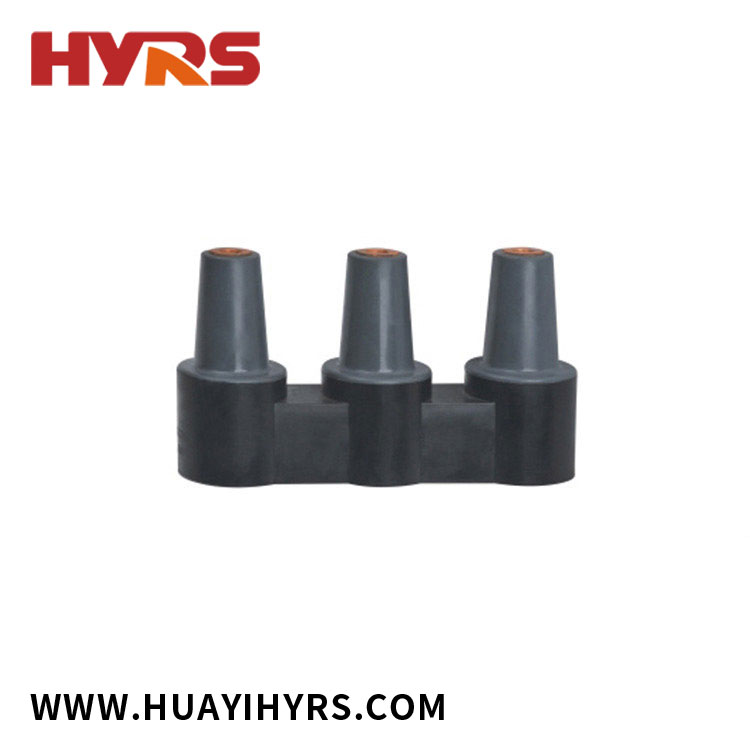

12kV Special-shaped Bus-bar

12kV Special-shaped Bus-bar

1.Product Introduction

The 12kV Special-shaped bus-bar is applied to cable branch box with SF6 load switch or vacuum circuit breaker. It is divided into European type and American type, with two, three and four connections. It can be composed of 630 joint, 630A hybrid joint and European 630A joint with umbrella skirt.  It can be composed of 630 joint, 630A hybrid joint and European 630A joint with umbrella skirt.  It can be connected with switch connecting end through cross joint and T-joint to achieve full insulation and full sealing.

The 12kV Special-shaped Bus-bar is used to connect switch cabinet, cable branch box, inlet and outlet bushing and other equipment. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our 12kV Special-shaped Bus-bar full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Our products, including 12kV Special-shaped Bus-bar, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

2.Product Parameter (Specification)

All the parameters of the 12kV Special-shaped Bus-bar are in conformity with the requirements and qualified.

3.Product Feature And Application

Executive Standard
*DIN47636.7.1990 with Power cable detachable accessory set protruding from cone, dimensions of tube and separable coupling devices Um up to 35kV;
*ANSIIEEE592-1900 Exposed semiconductor sheath for high voltage cable joints and separable insulated connectors;
*IEC60502 Extruded insulated power cables and accessories for rated voltage from 1kV (Um=1.2kV) to 30kV (Um=35kV);
*IEC61442 Test method for accessories of power cables with rated voltage from 6kV (Um=7.2kV) to 30kV (Um=35kV);
*GB12706-2002 Extruded insulated power cables and their accessories for rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV);
*GB311.1-1997 High voltage transmission and distribution equipment insulation coordination;
*GB/41.9-1999 Technical conditions of high pressure casing;
*GB11032-2010 Ac non - gap metal oxidation arrester;

4.Product Details

The details of the 12kV Special-shaped Bus-bar

5.Product Qualification

The 12kV Special-shaped Bus-bar has compact structure, small footprint, easy installation, convenient operation and maintenance free. The 12kV Special-shaped Bus-bar has an outdoor all-weather, fully protective structure. Suitable for high temperature, cold, flood immersion, high dust area. Fully sealed, fully insulated structure, no insulation distance, effectively ensure personal safety. The 12kV Special-shaped Bus-bar can be flexibly combined to make the outlet branch number up to seven, and can be combined with the load switch to form a ring network power supply, fully meet a variety of wiring requirements. The 12kV Special-shaped Bus-bar can be used as a switch with load plug. After installing fault indicator, cable fault can be detected quickly.

Our products, including 12kV Special-shaped Bus-bar, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

6.Deliver, Shipping And Serving

1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).
