Earth Protection Box

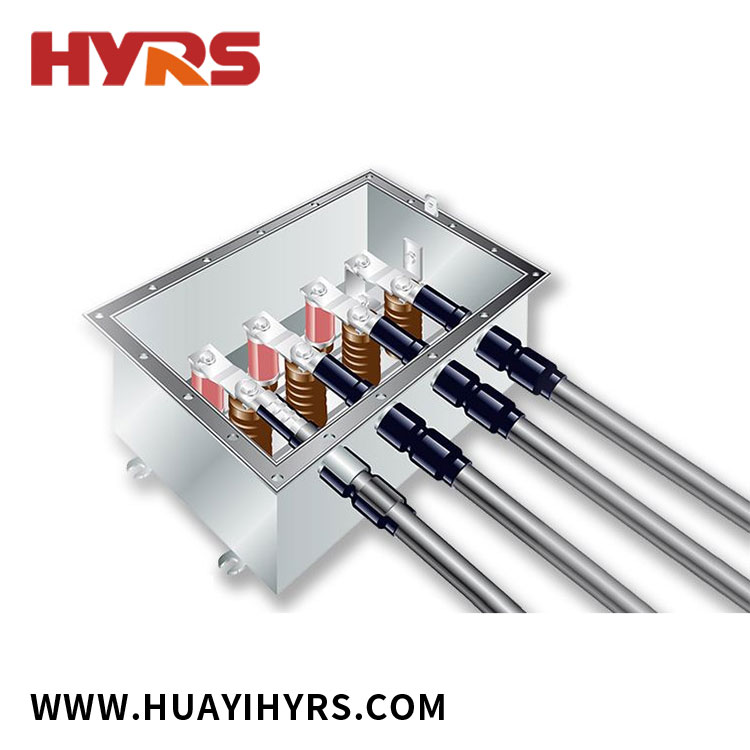

JX Earth Protection Box and JBX Earth Protection Box are suitable for direct grounding or protection grounding of metal protective layer of single core cross-linked cable of high voltage (35kV, 66kV, 110kV, 220kV) grade. The JX Earth Protection Box is used for the direct grounding of the metal cover of the three-phase single-core cable. The JBX Earth Protection Box is used for the protection grounding of the metal cover of the three-phase single-core cable.

Send Inquiry

Product Description

Earth Protection Box


1.Product Introduction


There are many types of Earth Protection Box, JHX cross connection box is suitable for high voltage (35kV, 66kV, 110kV, 220kV) grade of single core cross-linked cable metal protective layer of cross connection protection grounding, It can limit the increase of over-voltage on both sides of metal sheath and insulating joint, It can control the induced voltage of the metal sheath, reduce or eliminate the ring current in the sheath, and improve the transmission capacity of the cable, prevent the cable sheath from being broken down, ensure the safe and reliable operation of the cable. The box body is made of stainless steel, with high mechanical strength and good sealing and waterproof performance; T2 copper bus-bar is used for the internal terminal board, with small contact resistance and excellent conductivity; The protective layer protector has reliable performance, which can effectively prevent the over-voltage of the cable protective layer and ensure the normal work of the cable. The protector adopts two sealing and one forming, with good sealing performance.


Earth Protection Box


The Earth Protection Box has been operating as our signature product for many years. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our company has an independent factory site with the building area of 27000 square meters, the land area of more than 14300 square meters. Product testing equipment is complete, with nano electron accelerator, injection moulding machine, rubber molding machine and other production and manufacturing equipment. Also it has high pressure screening test center, fully meet the needs of product inspection and testing.


Earth Protection Box Factory


Our products, including Earth Protection Box, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Earth Protection Box Certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

Parameters

Direct-current Withstand Voltage Test

20kV, 1min, No flash-over, no breakdown

Impulse Voltage Test

40kV,Positive and negative poles 10 times each, no flash-over, no breakdown

Executive Standard

DI508 DL509 Gb11032

The Insulation Resistance between the connection bar and the shell

≥20MΩ

Contact Resistance of the connection bar

≤20μΩ

Applicable grounding or coaxial cable section

20mm2-300mm2


These parameters of our Earth Protection Box are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.

3.Product Feature And Application


1.The ground protection box and the cross-interconnection box can be equipped with a counter, leakage discharge detector, automatically record the discharge times of the protective protector under the action of over-voltage, monitoring the leakage current of the protector;
2.Compact structure, easy installation;
3.Can be mounted on the wall, can also be directly buried installation, according to user requirements, design and processing of vertical (cabinet) box, installed on the ground;
4.Products in the factory according to the standard 100% factory inspection.

4.Product Details


The Details of the Earth Protection Box

China Earth Protection Box


5.Product Qualification


At present, the main type of cross-linked cable terminals for 110~345kV voltage grade is prefabricated rubber stress cone terminal (prefabricated terminal), and the cross-linked cable terminals for higher voltage grade are silicon oil impregnated film capacitor cone terminal (capacitor cone terminal). Other types of terminals, such as the wrap type used earlier in the 110kV voltage class, are now rarely used. The Earth Protection Box has the characteristics of high mechanical strength, good insulation performance and strong pollution resistance.


Earth Protection Box Equipment


Our products, including Earth Protection Box, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Earth Protection Box


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).


Earth Protection Box


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
