Porcelain Sheathed Cable Termination

Porcelain Sheathed Cable Termination is a important part of 110kV products. The main varieties of 110kV and above XLPE insulated cable termination are: Outdoor termination, GIS termination (installed in fully enclosed combined appliances) and transformer termination (installed in transformer oil tanks). Prefabricated Rubber Stress Cone Termination and Prefabricated Intermediate Joint are main type of high voltage crosslinked cable accessories used in China. Our 110kV series products meet the requirements of IEC60840 and GB/T11017.3, the product adopts special electric field analysis software to optimize the design, and they are made of high quality materials and advanced production technology, it ensures uniform electric field, stable performance and reliable operation.

Send Inquiry

Product Description

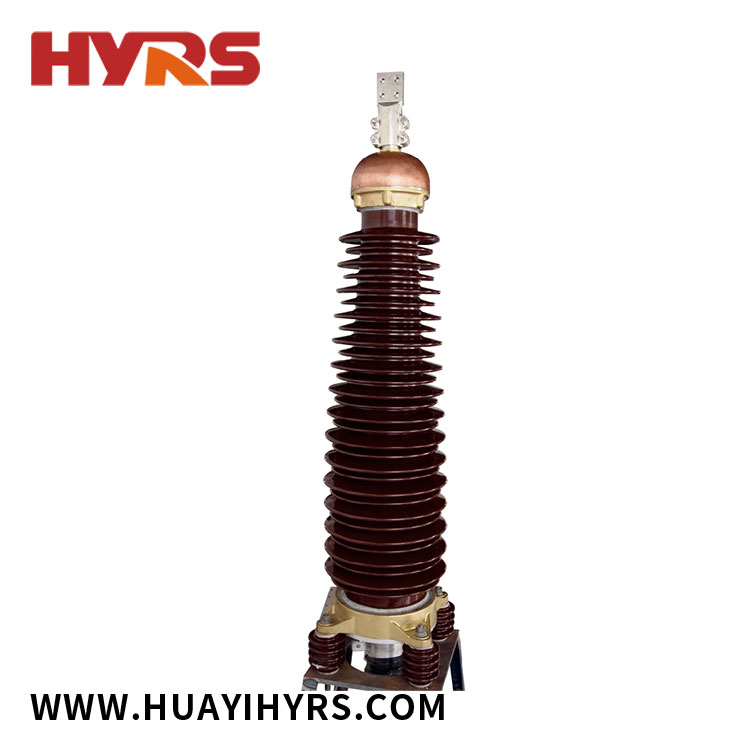

Porcelain Sheathed Cable Termination


1.Product Introduction


Porcelain Sheathed Cable Termination 64/110kV (240mm2~1600mm2) XLPE Power cable accessories conform to IEC60840 and GB/T11017.3 requirements. Product design absorbs advanced concepts at home and abroad, the product adopts special electric field analysis software to optimize the design, and they are made of high quality materials and advanced production technology, it ensures uniform electric field, stable performance and reliable operation. Porcelain sleeve of the Porcelain Sheathed Cable Termination adopts high Strength Electric Porcelain, with high Mechanical Strength, good Stability,and good Weather Resistance, Leakage and Corrosion Resistance. It's especially suitable for coastal areas with severe salt fog and bad natural environment area. The porcelain sleeve adopts the structure of large and small rain shed, reasonable design of creepage distance, good anti Pollution Flashover property, easy to clean and maintain.


Porcelain Sheathed Cable Termination


The Porcelain Sheathed Cable Termination has been operating as our signature product for many years. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our company has an independent factory site with the building area of 27000 square meters, the land area of more than 14300 square meters. Product testing equipment is complete, with nano electron accelerator, injection moulding machine, rubber molding machine and other production and manufacturing equipment. Also it has high pressure screening test center, fully meet the needs of product inspection and testing.


Porcelain Sheathed Cable Termination factory


Our products, including Porcelain Sheathed Cable Termination, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Porcelain Sheathed Cable Termination certificate


2.Product Parameter (Specification)


Technical Specification

Test Item

Parameters

Power frequency withstand voltage

160kV/15min

Partial Discharge

96kV≤1.5pc

Creepage Distance

≥4100mm

Pollution Severity

ⅣLevel


These parameters of our Porcelain Sheathed Cable Termination are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.

3.Product Feature And Application


1.Multiple sealing design structure, with good sealing performance, avoid flooding, oil leakage and other possible phenomena during installation or operation;
2.Prefabricated stress cone is made of high quality imported liquid silicone rubber material with excellent electrical performance;
3.All prefabricated stress cones are 100% factory tested as per standard in the factory.

4.Product Details


The Details of the Porcelain Sheathed Cable Termination

Porcelain Sheathed Cable Termination


5.Product Qualification


At present, the main type of cross-linked cable terminals for 110~345kV voltage grade is prefabricated rubber stress cone terminal (prefabricated terminal), and the cross-linked cable terminals for higher voltage grade are silicon oil impregnated film capacitor cone terminal (capacitor cone terminal). Other types of terminals, such as the wrap type used earlier in the 110kV voltage class, are now rarely used. The Porcelain Sheathed Cable Termination has the characteristics of high mechanical strength, good insulation performance and strong pollution resistance.


Porcelain Sheathed Cable Termination equipment


Our products, including Porcelain Sheathed Cable Termination, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Porcelain Sheathed Cable Termination


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).


Porcelain Sheathed Cable Termination


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.

Hot Tags: Porcelain Sheathed Cable Termination, China, Cheap, Quality, Bulk, Manufacturers, Suppliers, Factory, Quotation, In Stock
