Prefabricated Cable Joint

The main body of the Prefabricated Cable Joint is made of imported EPDM rubber injection molding. After installation, it is protected by high strength copper shell. Inside the shell, high-performance waterproof insulation sealant is poured into one body. The outer layer can be equipped with glass fiber reinforced plastic protection box as required. The inside of the box is poured with waterproof insulation sealant to ensure the safe operation of the joint in the harsh environment such as water accumulation and high corrosion for a long time.

Send Inquiry

Product Description

Prefabricated Cable Joint


1.Product Introduction


The main body of the Prefabricated Cable Joint is made of imported EPDM rubber injection molding. After installation, it is protected by high strength copper shell. Inside the shell, high-performance waterproof insulation sealant is poured into one body. The outer layer can be equipped with glass fiber reinforced plastic protection box as required. The inside of the box is poured with waterproof insulation sealant to ensure the safe operation of the joint in the harsh environment such as water accumulation and high corrosion for a long time. The main body of the Prefabricated Cable Joint adopts high quality imported silicone rubber, with high strength, high elasticity, high tear resistance and excellent heat aging performance; The main body of the Prefabricated Cable Joint is a whole prefabricated structure, high pressure shielding, stress cone and insulation injection into one, excellent performance, easy to test, installation; The main body of the Prefabricated Cable Joint is analyzed and optimized by finite element software, the field intensity distribution is more reasonable, and the insulation safety margin is high.


Prefabricated Cable Joint


The Prefabricated Cable Joint has been operating as our signature product for many years. HUYI in accordance with the brand of cable accessories and heat shrinkable products through constant research and development of science and technology, has reached the domestic and international most advanced level, at home and abroad enjoys a high reputation, the products sell well all over the country and world. Our company has an independent factory site with the building area of 27000 square meters, the land area of more than 14300 square meters. Product testing equipment is complete, with nano electron accelerator, injection moulding machine, rubber molding machine and other production and manufacturing equipment. Also it has high pressure screening test center, fully meet the needs of product inspection and testing.


Prefabricated Cable Joint Factory


Our products, including Prefabricated Cable Joint, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Prefabricated Cable Joint


2.Product Parameter (Specification)


Technical Specification

Test Item

Parameters

Power frequency withstand voltage

160kV/15min

Partial Discharge

96kV≤1.5pc

Creepage Distance

≥4100mm

Pollution Severity

ⅣLevel


These parameters of our Prefabricated Cable Joint are qualified and excellent. So you can rest assured purchase, if you have specific parameter requirements, please contact our agents, we will help you as soon as we received your request.

3.Product Feature And Application


1.The main body of the insulation joint and the straight joint is the same, the difference is only in the field installation of the shielding treatment, the insulation joint is one end of the insulation, the rest of the shielding, and the straight joint is fully shielded;
2.The Prefabricated Cable Joint adopts completely closed structure, high mechanical strength, good sealing performance; The insulated copper shell for joint protection is made of high strength T2 copper, the outer surface molded high density PE material is used for insulation and anticorrosion, with good mechanical protection and long-term waterproof sealing performance, to ensure long-term, safe and reliable operation of the joint under harsh environment.In addition according to the need can be equipped with FRP protection box as strengthening waterproof measures;
3.Special installation tools make installation more convenient.

4.Product Details

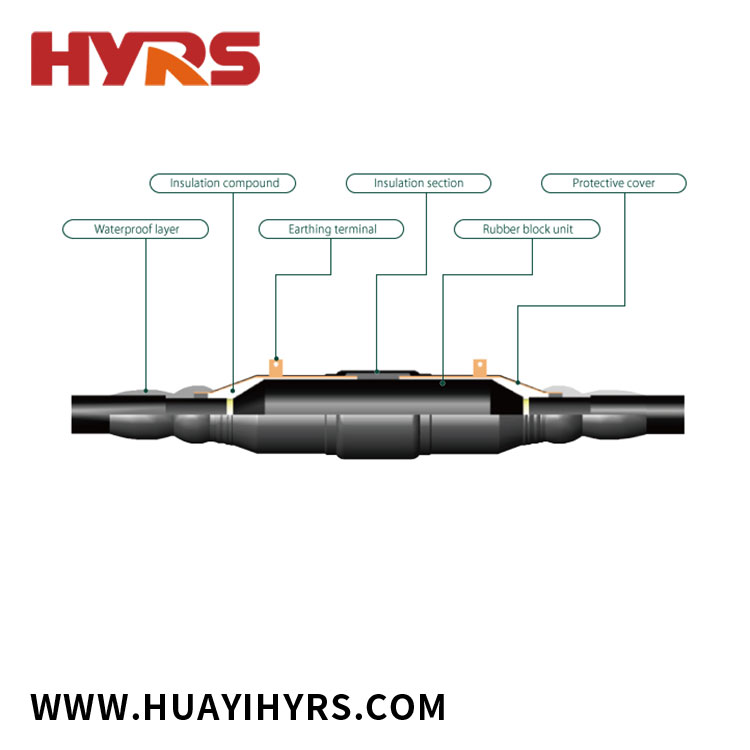

The Details of the Prefabricated Cable Joint


Prefabricated Cable Joint


5.Product Qualification


At present, the main type of cross-linked cable terminals for 110~345kV voltage grade is prefabricated rubber stress cone terminal (prefabricated terminal), and the cross-linked cable terminals for higher voltage grade are silicon oil impregnated film capacitor cone terminal (capacitor cone terminal). Other types of terminals, such as the wrap type used earlier in the 110kV voltage class, are now rarely used. The Prefabricated Cable Joint has the characteristics of high mechanical strength, good insulation performance and strong pollution resistance.


Prefabricated Cable Joint Equipment


Our products, including Prefabricated Cable Joint, have passed ISO9001: 2015 quality management system, ISO14001 environmental management system and OHSAS18001 occupational health and safety management system and the national production safety standardization certification, full implementation "6S" production management system, realize products zero defect, dedicated to provide customers with stable quality, reliable performance and high added value high quality products.

Prefabricated Cable Joint


6.Deliver, Shipping And Serving


1. Your inquiry will be replied within 24 hours.
2. We offer you professional service in fluent English.
3. Keep the mass production as the sample in high quality
4. Freight forwarder: faster, safer, and convenient.
5. Quality: we have QC on each process,provide high quality products.
Any problem or needed please feel free let us know, we are glad to service for you
We are factory, we can provide competitive price. And all the products will be shipped after quality inspection. Usually we quote within 24 hours after we get your inquiry. If you can not buy our product in your local area, we will ship a sample to you (Please contact our agent or send email to our mailbox).


Prefabricated Cable Joint


7.FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, we can provide competitive price.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.

Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

Q5: Why choose us?
A5: Welcome to our company, we are a group of creative people.
1.High quality is our obligation
2.Customer first, contact us now!
3.Great service is our mission!
4.Quality is the essence, wealth is the fruit.
5.Your opinion is the driving force of our progress.
6.A smile on your face and a service in your heart.
